| Merk: | Spearhead |
| Type: | LRS1402 |
| Sectoren: | Heggenschaar |
| Sectoren | Akkerbouw , Bouw , Groenvoorziening , Particulier |
| Bouwjaar | 2015 |
| Verwachte levertijd | Geen levertijd |
| Aantal | 1 |
| Eenheid | Stuk |
| Serienummer | 215814031 |
Omschrijving:

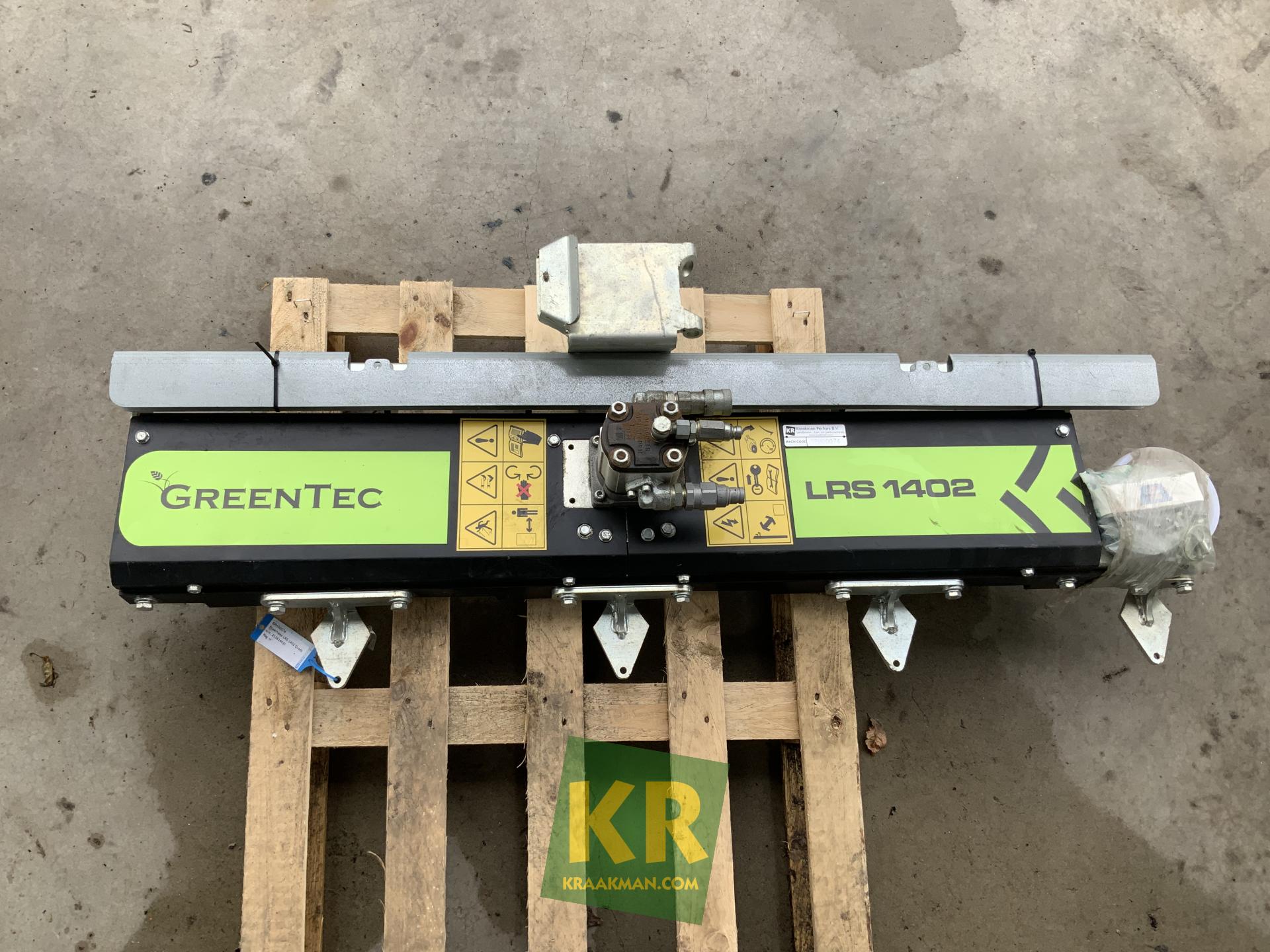

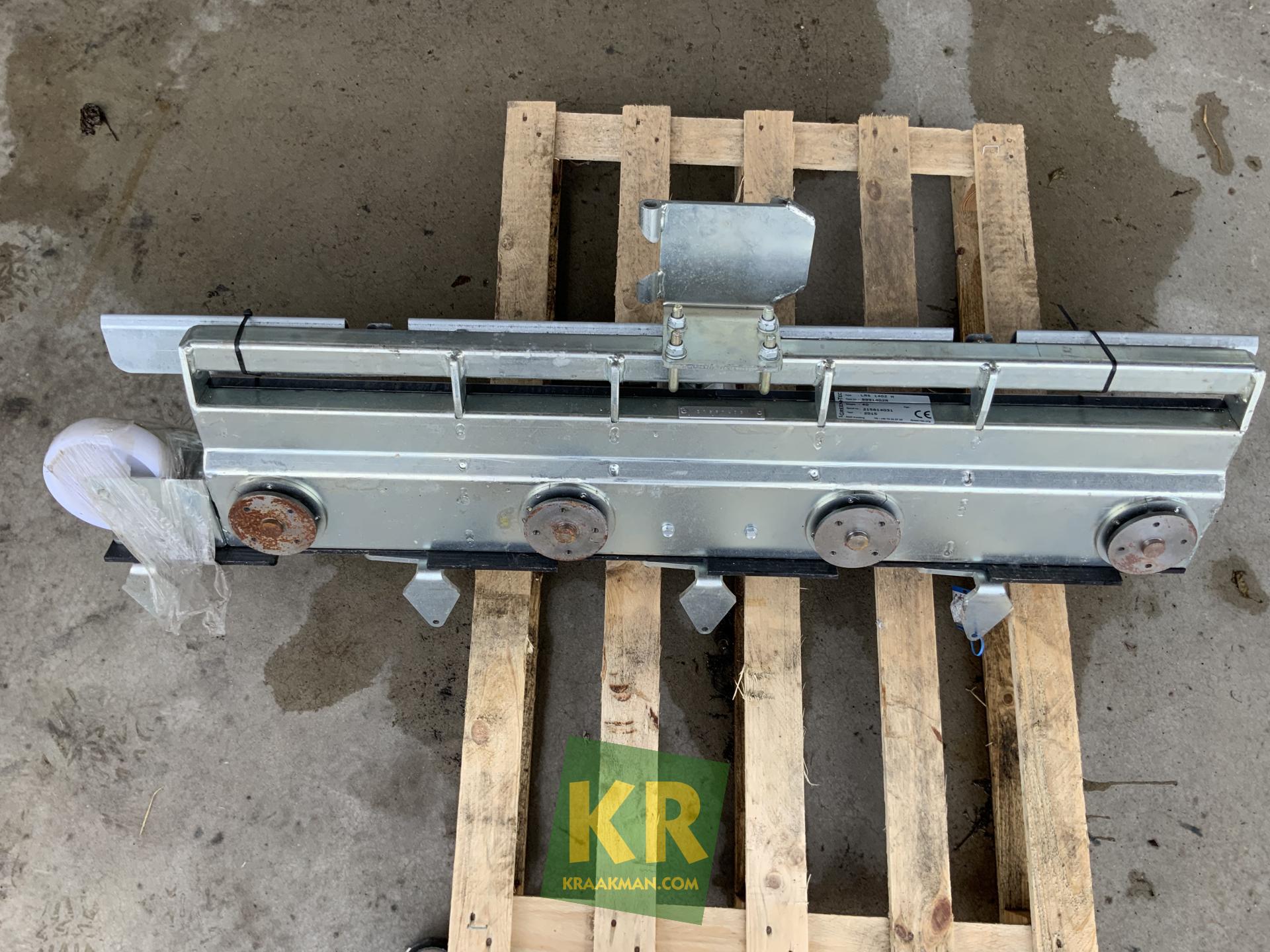

Spearhead / Greentec nieuwe quadsaw
werkbreedte 1,4 meter
4 bladen rond 35cm
Maximale zaagdikte is 0,5-10cm
Benodigd hydraulisch vermogen
25 liter met 190 bar
1x dw met een lek aansluiting
Uitvoering/opties:
TECHNICAL DATA LRS 1402
Working width 1.4 m
(4’7″)
Sawblades with Widia teeth 4 pcs: Ø 35 cm
(4 pcs: Ø 1’2″)
Max. branch thickness 0.5 – 10 cm
(0.20″ – 3.94″)
Required hydraulic connections 1 x double acting + 1 x drain
Required oil flow 25 l/min @ 190 bar
(6.6 gpm @ 2756 psi)
Blade speed 4000 rpm
Driving speed up to 5 km/h
(3.11 mph)
Weight 48 kg
(106 lb)
EQUIPMENT OVERVIEW
Blade diameter: 35 cm (1’2″)
Oil engine: 25 l/min @ max 190 bar (6.6 gpm @ 2756 psi)
Carbide tipped blades
Belt stretcher
Power Band belt drive
Belt tension gauge
Large smooth surface
Narrow body
Branch guider at each saw blade
4 blades in a line
7 ° angle allows overlap between the blades
Flexible mounting point
Support wheel (the saw avoids hitting the ground)
Mechanical quick release
Hydraulic quick release
= Standard equipment
= Optional equipment
